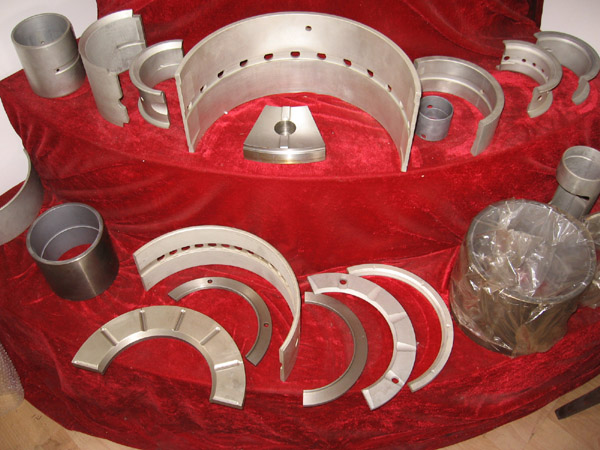

Wartsila vasa32 main bearing ,Wartisla32 thrust bearing. Wartsila32 big end bearing
商品信息
Wartsila vasa32 main bearing ,Wartisla32 thrust bearing.
Wartsila32 big end bearing . Wartsila vasa32 big end bearing .
| engine type | Description | drawing No. | Specification | code number |
| BEARING series | ||||
| VASA | bearing | YIR6-101-00 | φ102.022×3.42×33 | |
| VASA | bearing | YIR6-102-00 | φ83.022×3.43×26 | |
| VASA | bearing seat | YIR6-103-00 | φ130×φ102×38.5 | |
| VASA | bearing seat | YIR6-104-00 | φ100×φ83×30.5 | |
| VASA | bigend bearing | YIR-101-00 | φ233.029×6.415×96 | 1401SW140141 |
| VASA | thrust bearing | YIR-102-00 | φ354.036(390)×6.915×164(189) | 3378040 |
| VASA | main bearing | YIR-103-00 | φ264.032×6.895×88 | 1102SW125126 |
| VASA | bigend bearing | YIR-104-00 | φ185.029×4.92×85 | 111406/111407 |
| W32 | main bearing | YIR-105-00 | φ315.032×7.39×125 | 100096(1V10B147/148) |
| *W32 | big end bearing | φ282×5.9×98 | 1V11B134/135 | |
| W32 | main bearing (rear) | YIR-106-00 | φ315.025×7.39×102 | 100113(2VLOE028) |
| W32 | piston pin bush | YIR-107-00 | φ155×φ135×155 | 111002(111004)2V11B48F |
| W32 | thrust bearing ring | YIR-108-00 | φ372.6×φ317×14.84 | 100112(2V10B0261) |
| VASA | main bearing | YIR-109-00 | φ198×6.42×100 | |
| W22 | bigend bearing | φ190×5×68 | 2V11B159/160 | |
| W22 | main bearing | φ215×7.5×77 | 2V10B168/169 | |
| W22 | main bearing (rear) | φ215×7.5×60 | 2V10E0022 | |
| W22 | valve | φ72×φ16×290 | 3V12B18EX | |
| W22 | bush | φ105×φ90×96 | 2V11B0279 | |
| W22 | bigend bearing | φ190×5×71 | 2V11B1250/1260 | |
| W22 | bigend bearing | φ190×5×68 | 2V11B0569/70 | |
| W22 | main bearing | φ225×7×75 | 2V10B0262/63 | |
| thrust bearing | φ198×6.44×135 | 1V10B31 |
